• Model No.: YS0028
• Volume: 28 Litre
• Main Material:PP with PU insulation
• Usable Cold Space: 18 Litre
• External Dimension (L*W*H):52 *32.3*34.5 cm
• Internal Dimension(L*W*H): 44* 25.4 *28.5cm
• Weight: 5.6 kg empty
• Cold source:  hard gel ice bricks or soft ice gels
• Ice bricks quantity: 4pcs

DESCRIPTION

• Built-in temperature display with probe

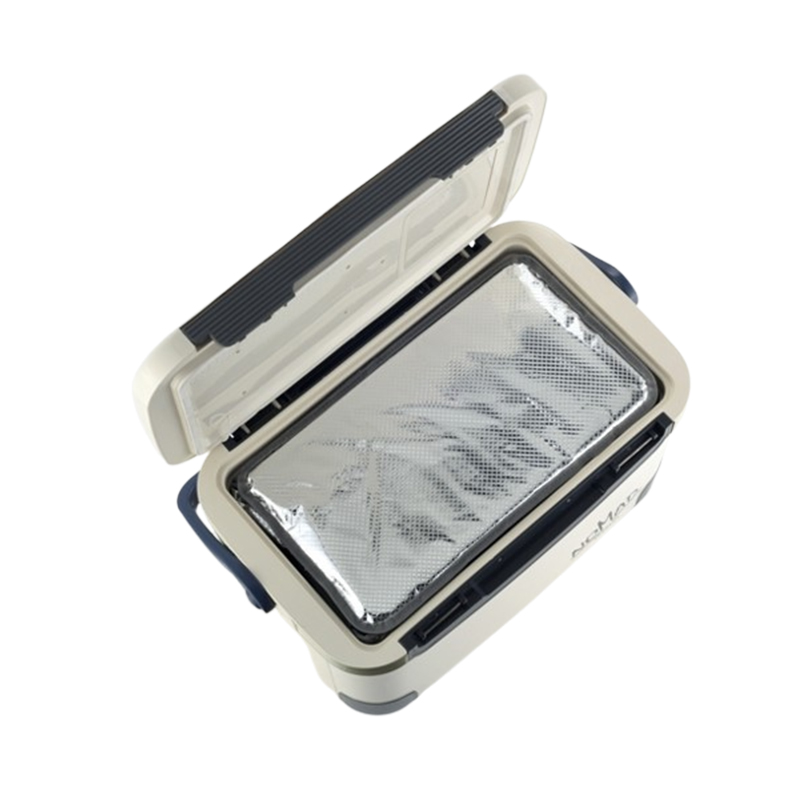

• Aluminium heat preserving foil lining with pocket to separate medicine from ice pack
• Hard ice brick or soft ice gel
• Adjustable webbing  shoulder strap
• Rigid Carrying Handle
• Alarmed Thermometer
• Ideal for medicine, vaccine and all temperature sensitive product
• Holds temperature inside between 2 – 8°C for 32 hours
• Covered Bung Non slip feet

USER INSTRUCTIONS

2.1. Leave ice bricks in freezer at -20°C for about 8-12 hours with fully frozen for 24 hours
2.2. Place frozen ice bricks inside the foil pockets in the cooler box directly or insert into the  pocket of aluminum foil liner.

2.3. When LED thermometer shows inside temperature reaches the desired temperature, place products inside the box, close the lid and fasten button
